| Model Number |
ECA3500BA-RGB |
| Dimensions |
D478 x W223 x H566 mm |
| Material |
0.8mm SPCC |
| M/B Type |
ATX, Micro ATX, Mini ITX |
| I/O |
USB3.0 x 2, USB2.0 x 2, HD Audio, Fan speed controller
LED mode control, LED color control, Lumi switch |
| Drive Bays |
5.25" |
1 |
| 3.5" |
2 |
| 2.5" |
6 ( 2 x Converted from 3.5" trays ) |
| Expansion Slots |
7 |
| Fan Slots |
Front |
3 x 120mm ( 3 x 120mm T.B. RGB type fans pre-installed ) |
| Top |
2 x 140mm or 3 x 120mm |
| Rear |
1 x 140 / 120mm (1 x 140mm fan pre-installed) |
| Side |
2 x 120mm |
| Liquid Cooling |
Front |
360 / 240mm radiator ( 62mm clearance ) |
| Top |
360 / 280 / 240mm radiator ( 63mm clearance ) |
| Rear |
140 / 120mm radiator |
| Side |
240mm radiator |
| PSU |
Standard ATX Type |
| Maximum Compatibility |
VGA Card Length: 420mm (280mm with side radiator) |
| Suggested CPU Cooler Height: 175mm |

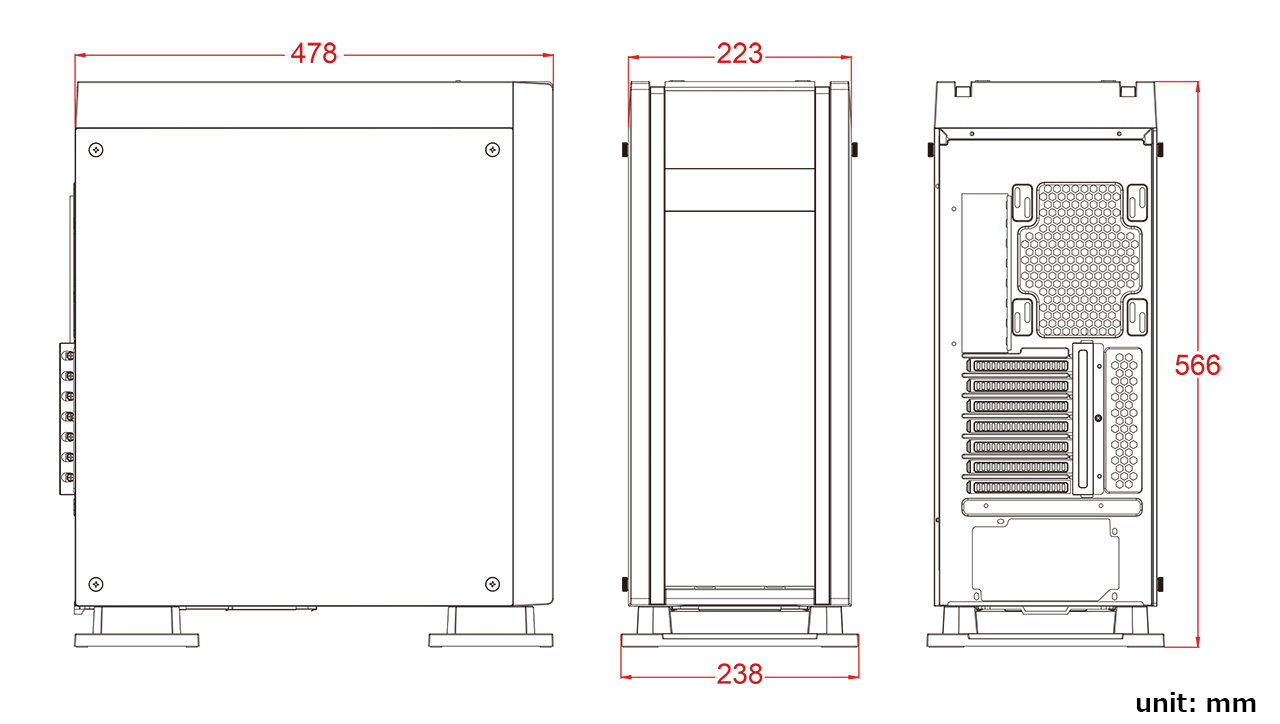

Dimensions
