| Model |
ERB500AWT |
AC Input
Voltage |
100 - 240VAC, Active PFC, 47 - 63Hz
Maximum range : 90 - 264VAC |
AC Input
Current |
8A - 4A |
|
DC Output |
|
Rated |
Combined |
| +3.3V |
22A |
110W |
| +5V |
18A |
| +12V1 |
30A |
498W
(41.5A) |
| +12V2 |
30A |
| -12V |
0.3A |
3.6W |
| +5Vsb |
2.5A |
12.5W |
| Total Power |
500W |
| Peak Power |
550W
*Peak power may last up to 60 seconds |
|
Environment |
| Temperature |
Operation ambient : 0 〜 40℃
Storage ambient : -20℃ to +70℃ |
| Humidity |
Operation : 20% to 90% relative humidity
Storage : 5% to 95% relative humidity |
|
Others |
| Power Factor |
> 0.95 at 230Vac input and full load |
| Cooling |
One 12cm Twister bearing fan,
speed auto controlled |
| MTBF |
100K hours minimum at full load 25℃ per Bellcore_MIL-HDBK-217F |
| Dimension |
150(W) x 86(H) x 140(D) mm |
| Weight |
1.5kg(±100g) |
| Safety & EMC |
|
| Warranty |
3 years |

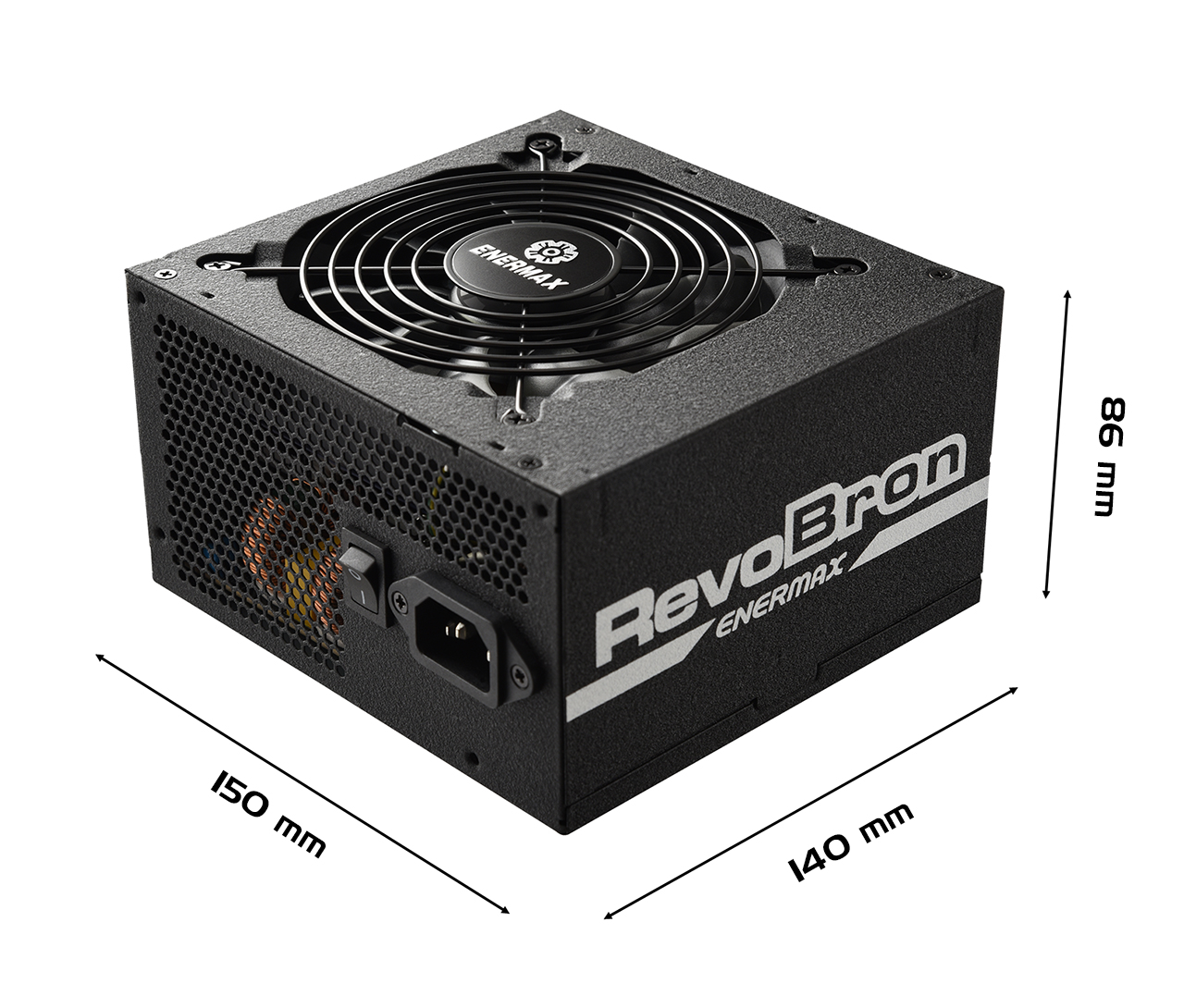

寸法 / Dimension
